Products Category

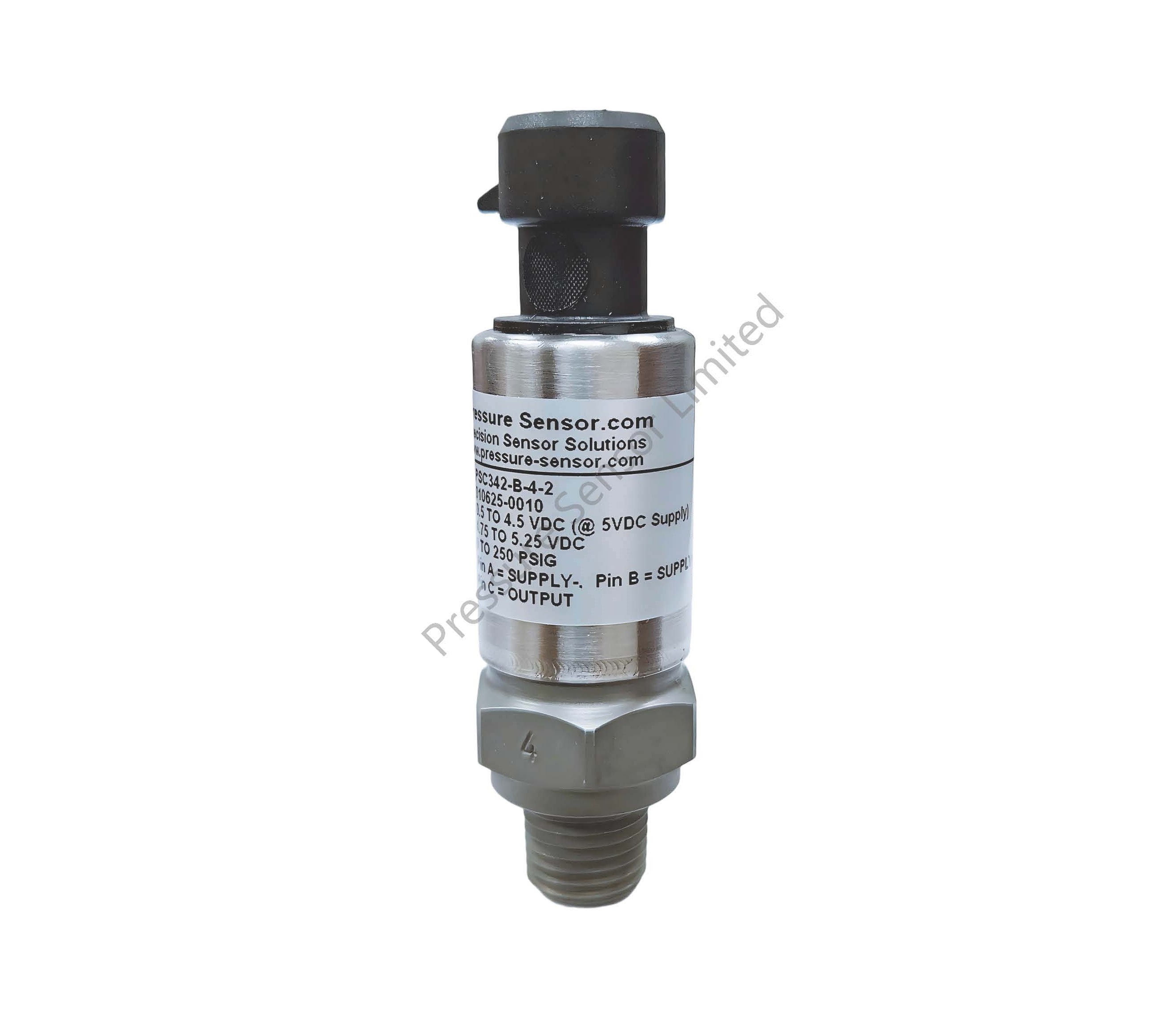

PSC342 Pressure Transducer with UL performance

Output/Supply : 4-20mA/9-32VDC ; 0.5-4.5VDC/4.75-5.25VDC ; 1-5VDC/9-32VDC ; 0.5-4.5VDC/9-32VDC ; 0-5VDC/9-32VDC
Pressure range : 0 To 50-20000psi
Type : Gage,Sealed Gage
Thread : M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or custom
Compensated temp range/Operating temp range : 0 To 70℃/-40 To 125℃or custom
TEB : ±1.5% FS
Wetted parts : 17-4SS/316 SS
Electrical connection : Packard

¥ 0.00

Buy now
PSC602 MEMS Transducer

Output/Supply : 0.5-4.5VDC/4.75-5.25VDC
Pressure range : 0 To 3-5000psi
Type : Gage,ABS,Sealed Gage
Thread : M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range : -20 To 85℃/-30 To 125℃or customization
TEB : ±1.5% FS
Wetted parts : 316 SS
Electrical connection : Packard

¥ 0.00

Buy now
PSC616 Oil filled transducer

Output/Supply: 0.5-4.5VDC/4.75-5.25VDC; 0-5VDC/8-15VDC
Pressure range: 0 To 1-1500psi
Type: ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection : 3pin connector

¥ 0.00

Buy now
PSC826 UHP transducer

Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC; 0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 50-20000psi
Type: Gage,Sealed Gage
Thread: 9/16UNF
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 17-4SS/316 SS
Electrical connection: M12

¥ 0.00

Buy now
PSC837 P-T transducer

Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC; 0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 50-20000psi
Type: Gage,Sealed Gage
Thread: G1/4, 1/4NPT,1/2NPT
Compensated temp range/Operating temp range 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 17-4SS/316 SS
Electrical connection: 3 keyway connector

¥ 0.00

Buy now

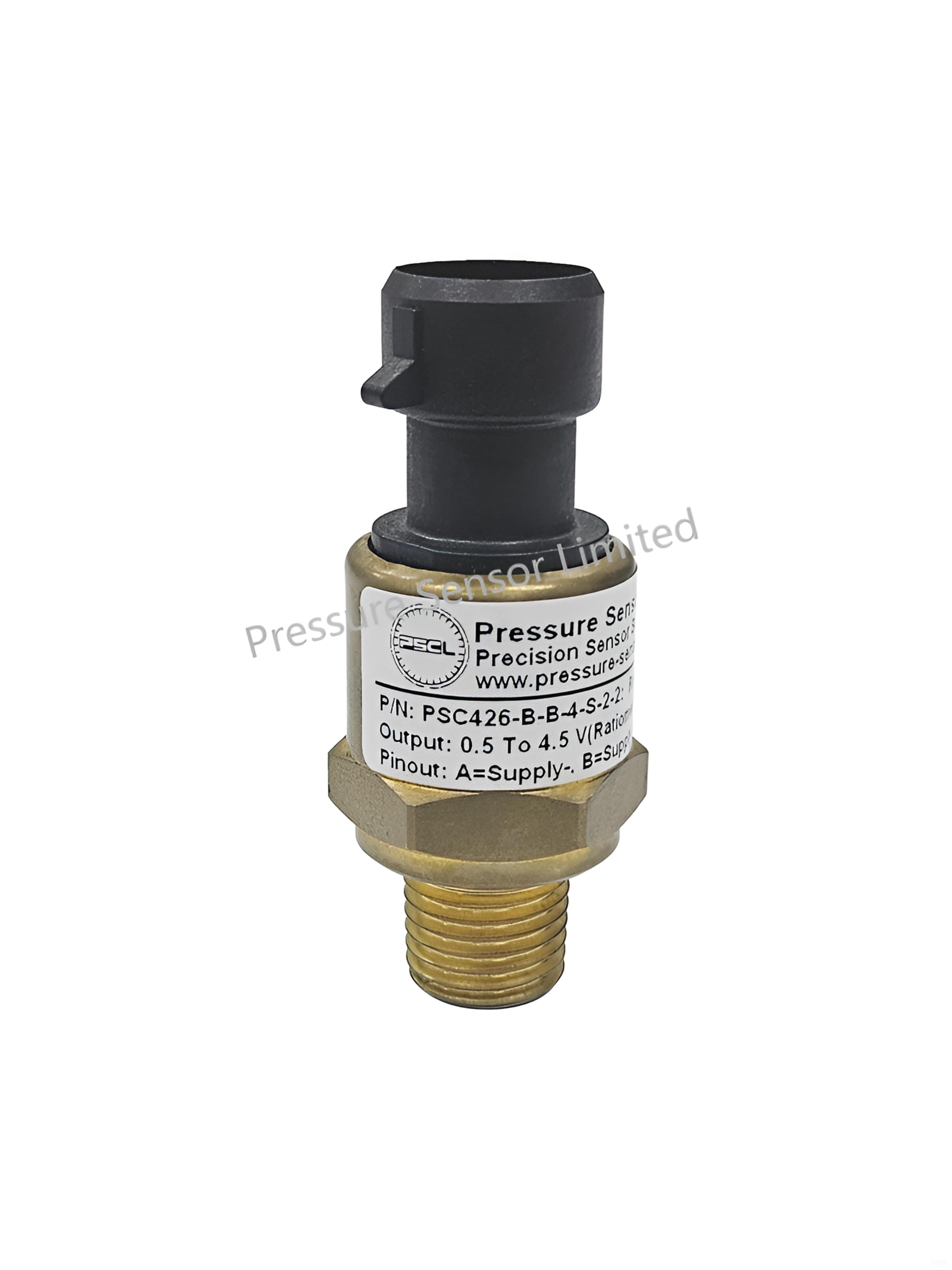

PSC426 Ceramic transducer

Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC
Pressure range: 0 To 50-435psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-20 To 85°C or customization
TEB: ±2.0% FS
Wetted parts: Brass/316 SS
Electrical connection: Packard

¥ 0.00

Buy now

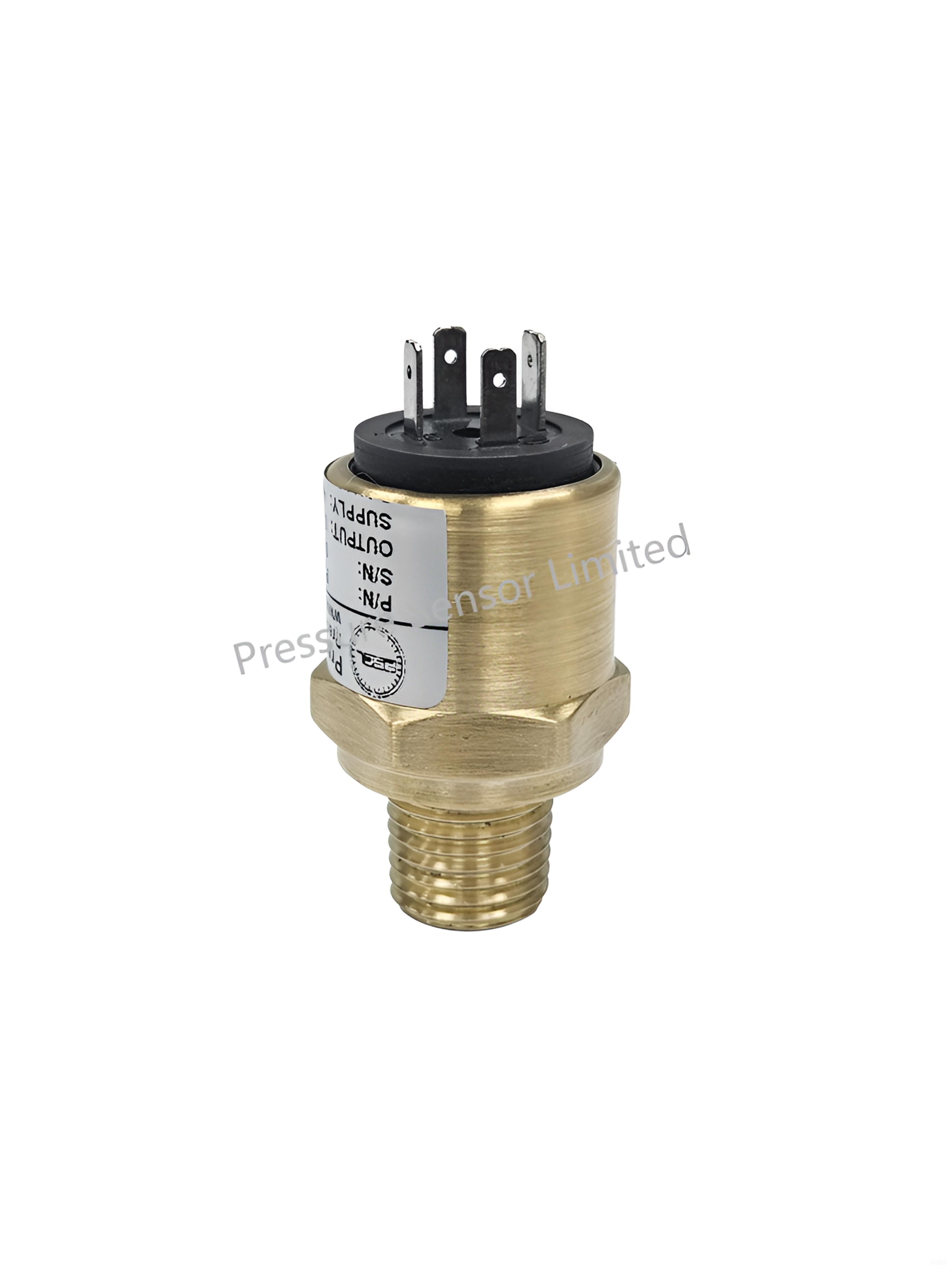

PSC423 Ceramic transducer

Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC
Pressure range: 0 To 50-435psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-20 To 85°C or customization
TEB: ±2.0% FS
Wetted parts: Brass/316 SS
Electrical connection: DIN43650

¥ 0.00

Buy now
PSC634 MEMS transducer

Output/Supply: 4-20mA/9~32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC
0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 1-15psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: M12

¥ 0.00

Buy now
