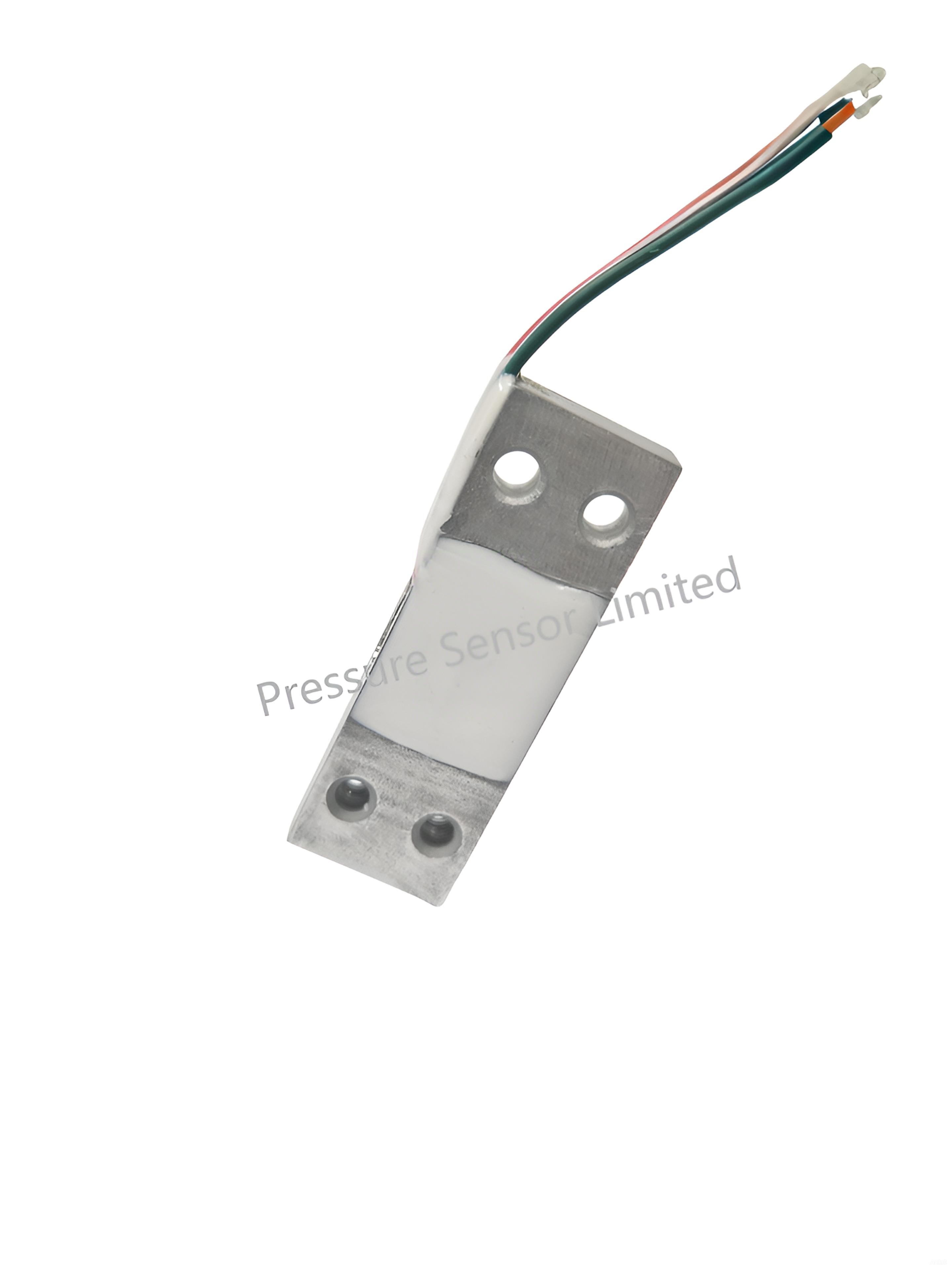

PSC-LC10 Aluminum Beam Load Cell
Output/Supply: 1.0±0.1mV/V /5VDC
Capacity: 3/5/10/20Kg
Type: Strain gage
Thread: M4
Compensated temp range/Operating temp range : 0-50°C
Wetted parts: AL2024
Electrical connection: Wire¥ 0.00Buy Now
-
MS-8885 Bluetooth Temperature sensor
Output/Supply: Bluetooth
Compensated temp range/Operating temp range: Null/-10 To 50°C or customization
TEB: ±1.5% FS
Wetted parts: PA66¥ 0.00Buy Now
-
PSC616 Oil filled transducer
Output/Supply: 0.5-4.5VDC/4.75-5.25VDC; 0-5VDC/8-15VDC
Pressure range: 0 To 1-1500psi
Type: ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection : 3pin connector¥ 0.00Buy Now
-
PSC837 P-T transducer
Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC; 0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 50-20000psi
Type: Gage,Sealed Gage
Thread: G1/4, 1/4NPT,1/2NPT
Compensated temp range/Operating temp range 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 17-4SS/316 SS
Electrical connection: 3 keyway connector¥ 0.00Buy Now
-
PSC637 MEMS transducer
Output/Supply: 4-20mA/9-32VDC;0.5-4.5VDC/4.75-5.25VDC;1-5VDC/9-32VDC;0.5-4.5VDC/9-32VDC;0-5VDC/9-32VDC;0-10VDC/12-32VDC
Pressure range: 0 To 1-15psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or custom
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Connection: Packard connector¥ 0.00Buy Now
-

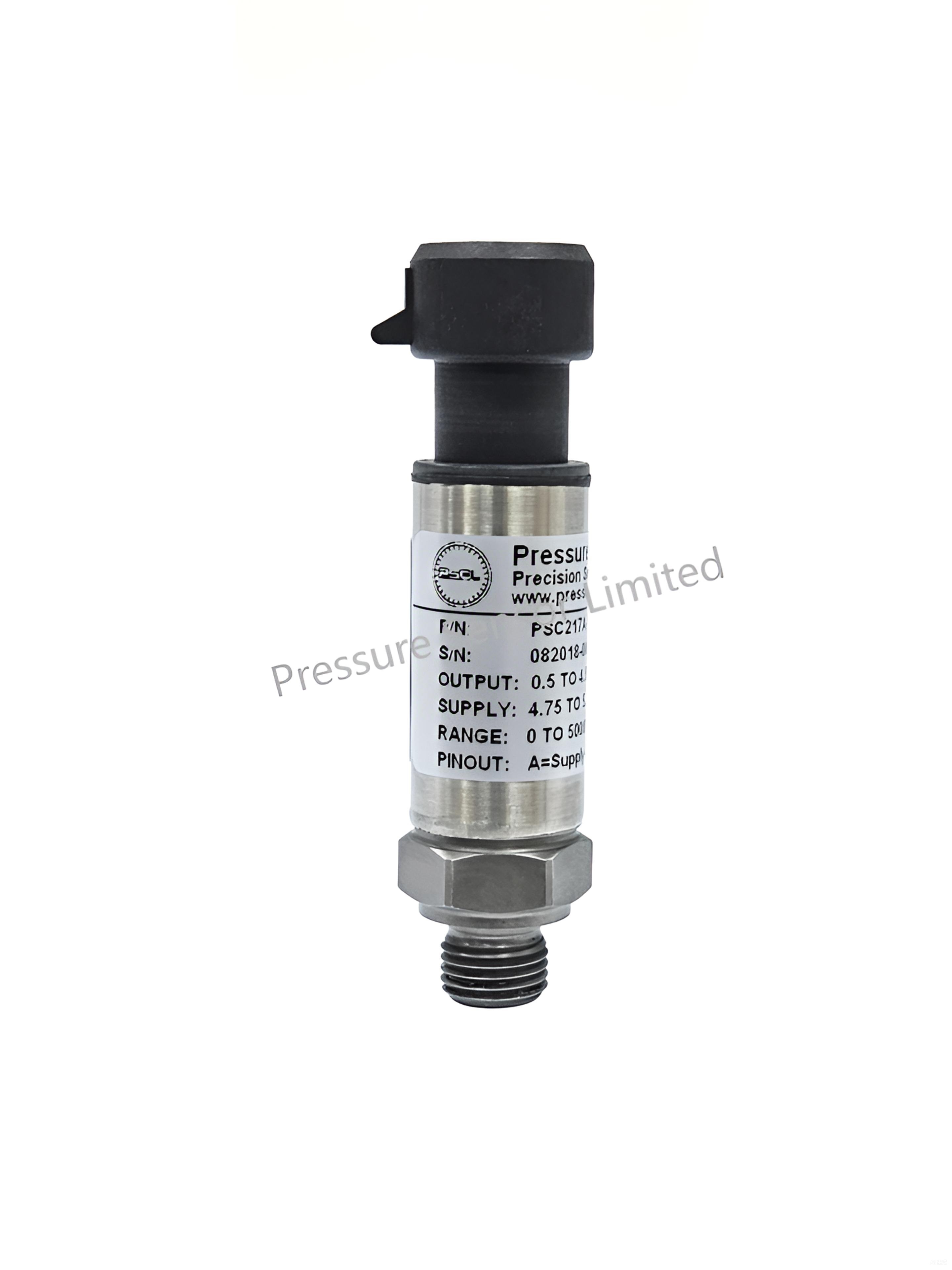

PSC217 Low cost transducer
Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC; 0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 50-10000psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 17-4SS/316 SS
Electrical connection: Packard¥ 0.00Buy Now
-
PSC670 Port Sensor
Output/Supply: 0-100mV Typ./1.5mA Typ
Pressure range: 0 To 15-10000psi
Type: Gage,ABS,Sealed Gage
Thread: 1/8-27 NPT,1/4-18 NPT,M10,7/16-20 UNF,G1/8,5/16-24 UNF,3/8-24 UNF,5/16-32 UNEF,1/8-27 NPT Female, 1/4-19 BSPT or customization
Compensated temp range/Operating temp range: 0 To 60°C/-40 To 125°C or customization
TEB: ±2.0% FS
Wetted parts: 316 SS
Electrical connection: Cable/connector
Application: Medical Instruments, Industrial Process Control,Gas Measurement, Pressure gauge¥ 0.00Buy Now
-
PSC630 MEMS Type sensor
Output/Supply: 0-100mV Typ./1.5mA Typ.
Pressure range: 0 To 3-15000psi
Type: ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: Wire
Application: Industrial Process Contro, Pressure transmitters and instrumentation, Hydraulic Systems, Test and Measurement, Heavy Industry¥ 0.00Buy Now
