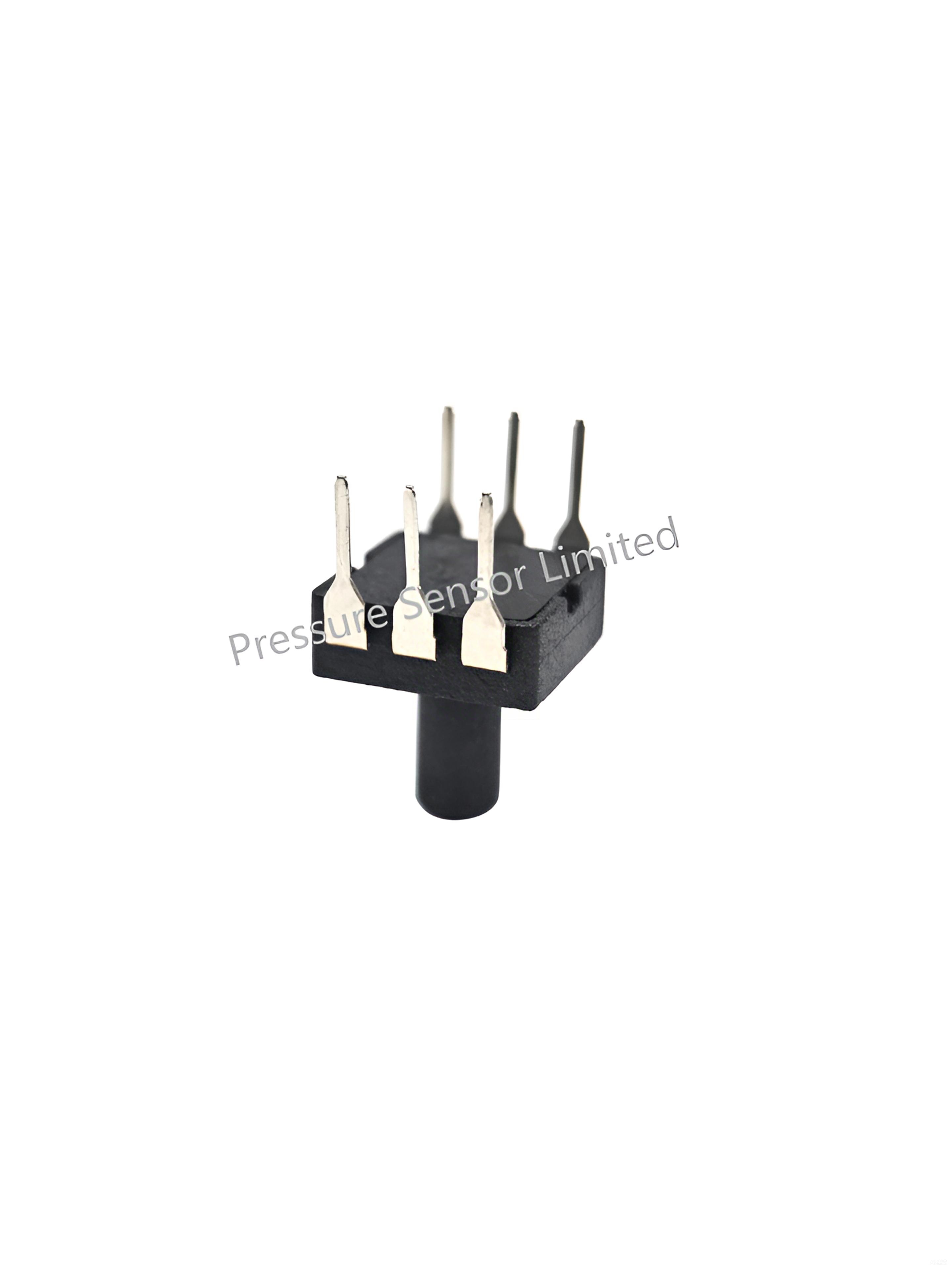

PSC647 MEMS packaged sensor

Output/Supply: 0.5-4.5VDC/4.75-5.25VDC; I²C/3.3VDC Typ.
Pressure range: 0 To 15-150psi
Type: Gage
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±2.5% FS
Wetted parts: PPS
Electrical connection: DIP
Application: Compressed Air, Moisture Air, Medical application and Fire-fighting equipment

Datasheet Download：/filedownload/164479
