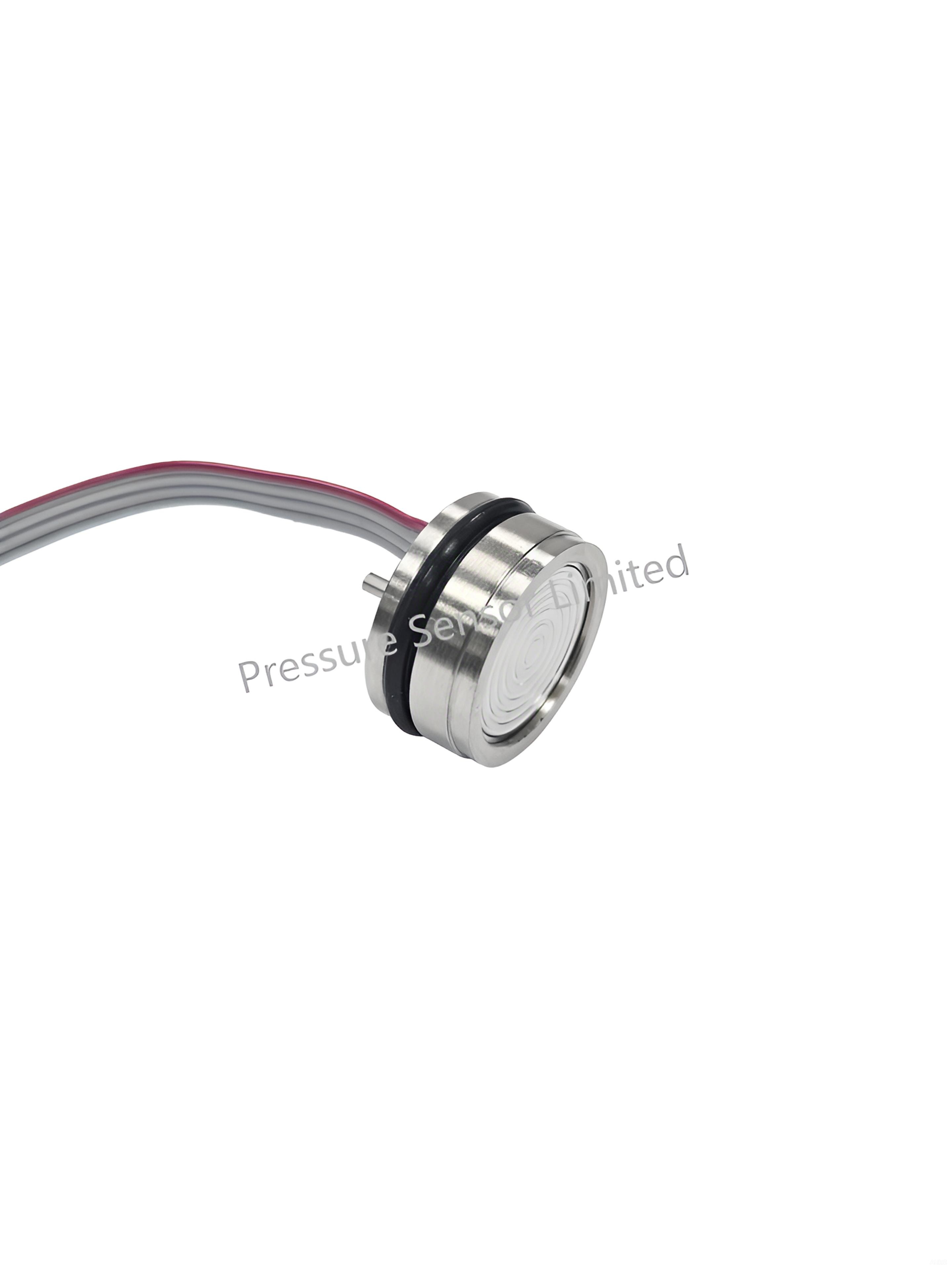

PSC670 Port Sensor
Output/Supply: 0-100mV Typ./1.5mA Typ
Pressure range: 0 To 15-10000psi
Type: Gage,ABS,Sealed Gage
Thread: 1/8-27 NPT,1/4-18 NPT,M10,7/16-20 UNF,G1/8,5/16-24 UNF,3/8-24 UNF,5/16-32 UNEF,1/8-27 NPT Female, 1/4-19 BSPT or customization
Compensated temp range/Operating temp range: 0 To 60°C/-40 To 125°C or customization
TEB: ±2.0% FS
Wetted parts: 316 SS
Electrical connection: Cable/connector
Application: Medical Instruments, Industrial Process Control,Gas Measurement, Pressure gauge
