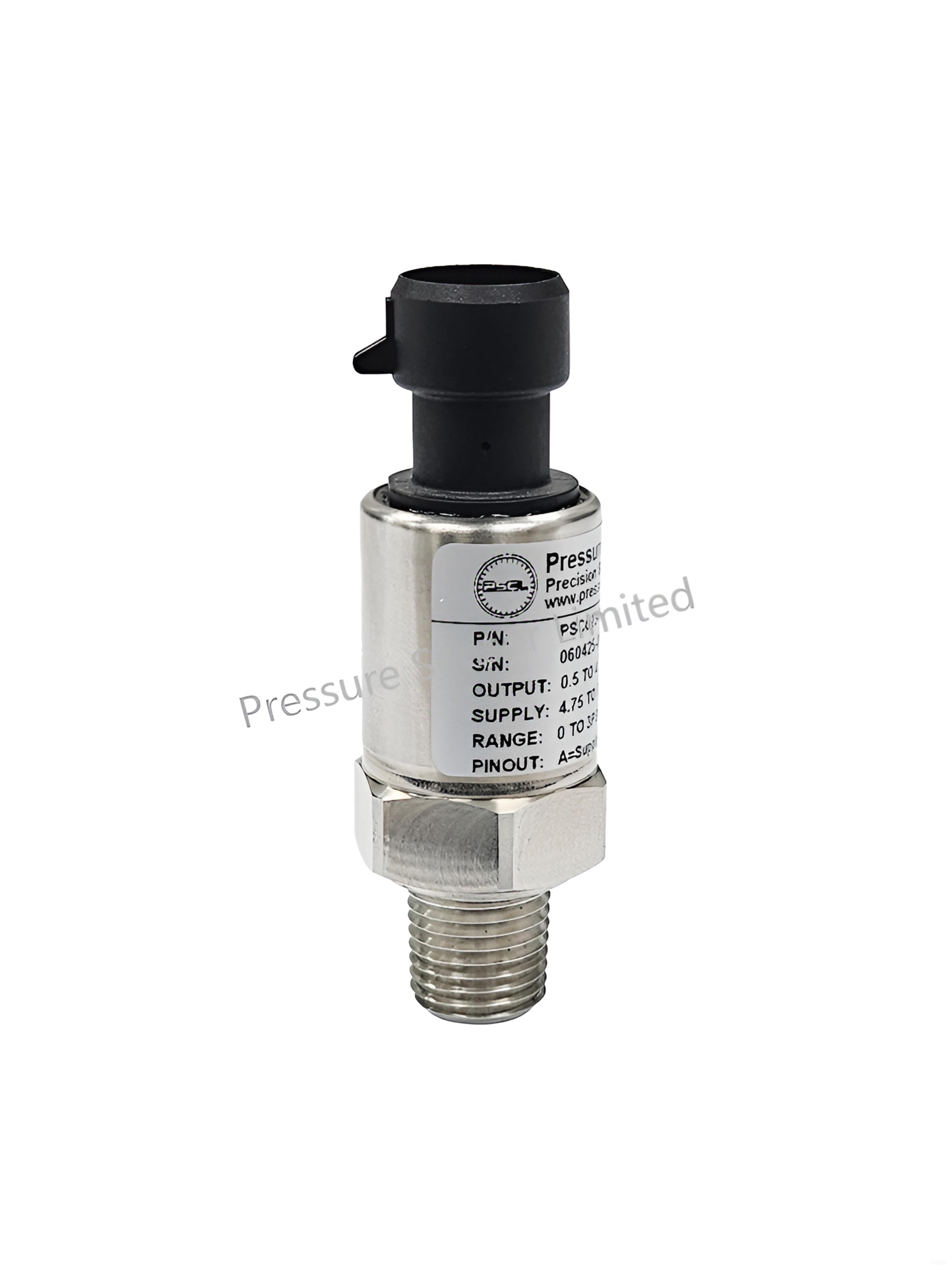

PSC602 MEMS Transducer

Output/Supply : 0.5-4.5VDC/4.75-5.25VDC
Pressure range : 0 To 3-5000psi
Type : Gage,ABS,Sealed Gage
Thread : M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range : -20 To 85℃/-30 To 125℃or customization
TEB : ±1.5% FS
Wetted parts : 316 SS
Electrical connection : Packard

¥ 0.00

Buy now

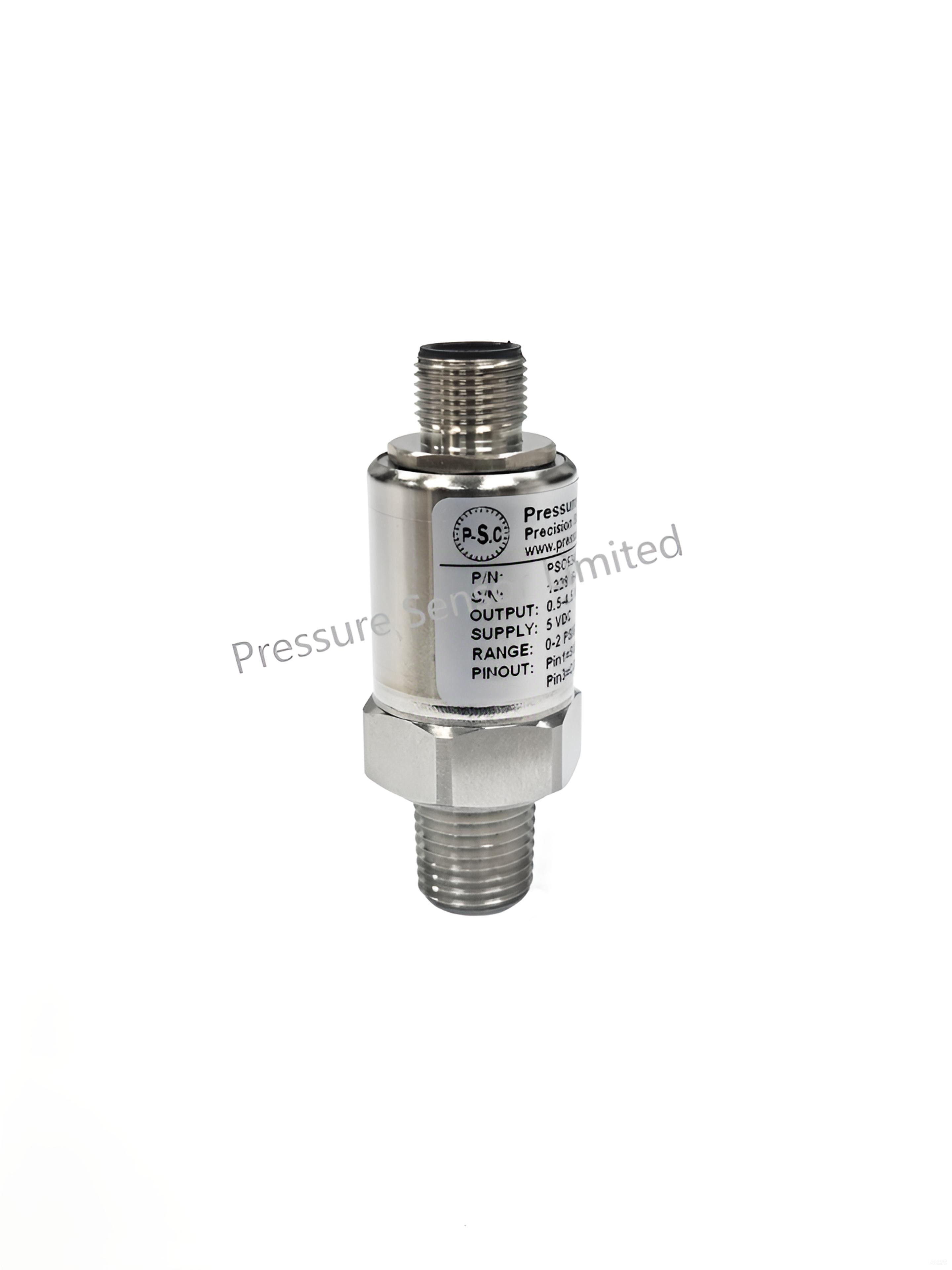

PSC634 MEMS transducer

Output/Supply: 4-20mA/9~32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC
0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 To 1-15psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: M12

¥ 0.00

Buy now

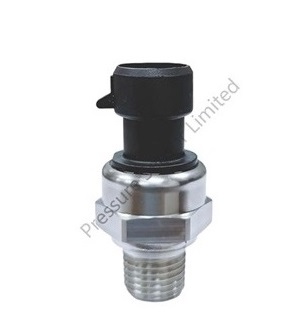

PSC623 MEMS transducer

Output/Supply: 4-20mA/9-32VDC; 0.5-4.5VDC/4.75-5.25VDC; 1-5VDC/9-32VDC; 0.5-4.5VDC/9-32VDC
0-5VDC/9-32VDC; 0-10VDC/12-32VDC
Pressure range: 0 to 0.5-5000psi
Type: Gage,ABS,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or customization
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: Packard

¥ 0.00

Buy now

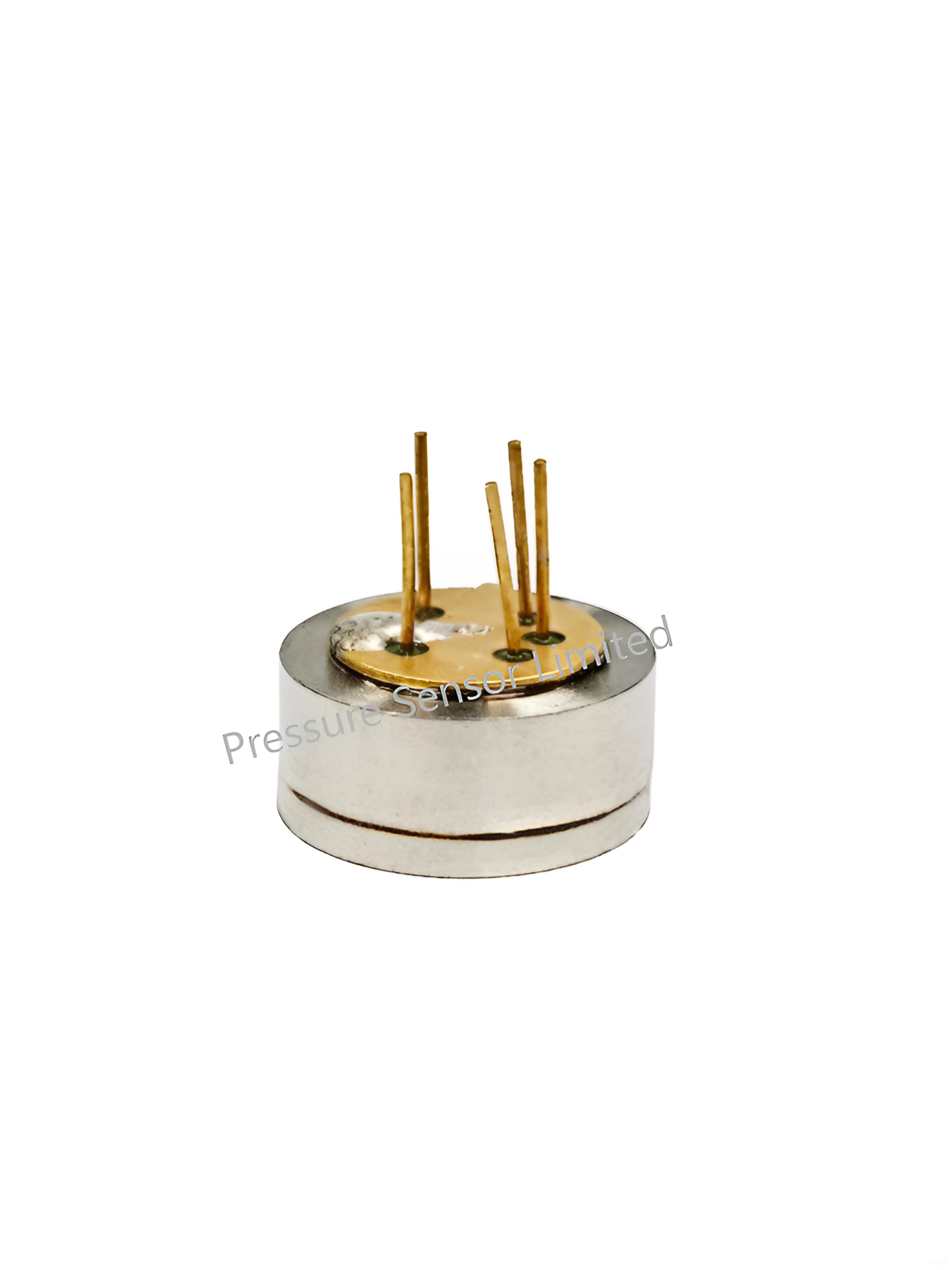

PSC622 MEMS sensor

Output/Supply: 0-150mV Typ./1.5mA Typ.
Pressure range: 0 To 3-5000psi
Type: Gage,ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range: Null/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: Wire

¥ 0.00

Buy now

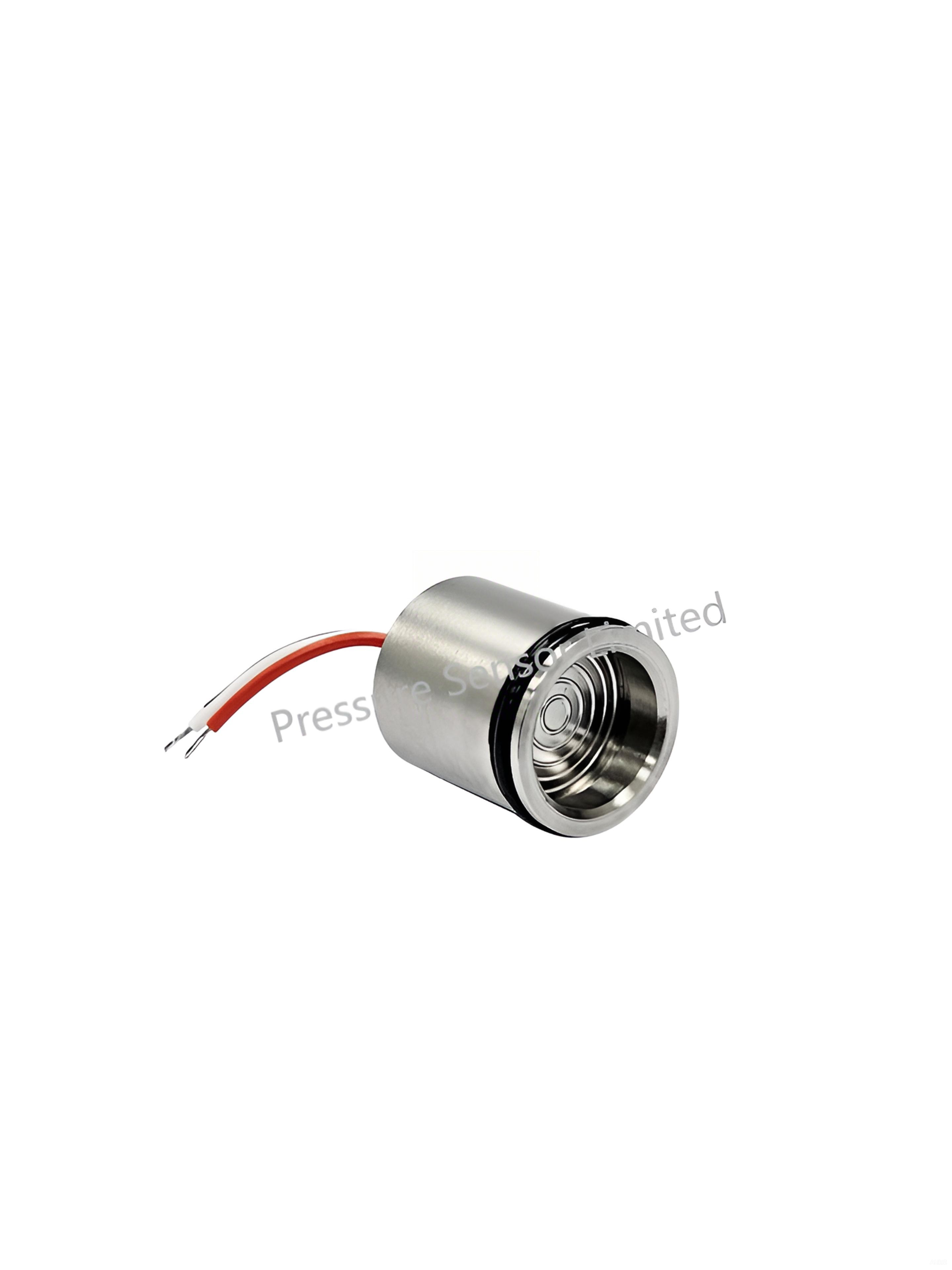

PSC621 MEMS transducer

Output/Supply: 0.5-4.5VDC/4.75-5.25VDC; I²C/3.3VDC Typ.; 0-100mV/10VDC Typ.; 0-100mV Typ./1.5mA Typ.
Pressure range: 0 To 3-500psi
Type: Gage,ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: Wire

¥ 0.00

Buy now

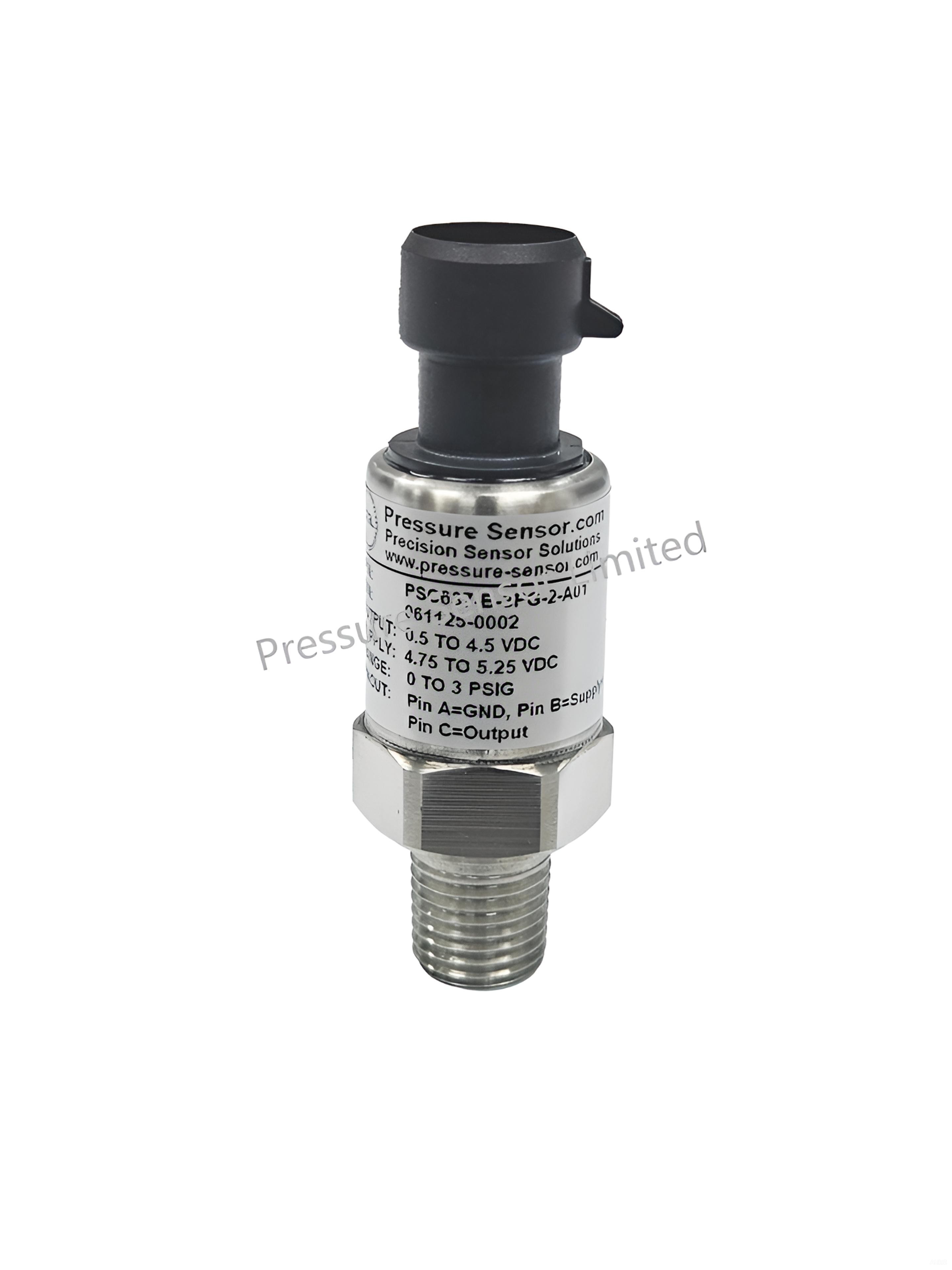

PSC637 MEMS transducer

Output/Supply: 4-20mA/9-32VDC;0.5-4.5VDC/4.75-5.25VDC;1-5VDC/9-32VDC;0.5-4.5VDC/9-32VDC;0-5VDC/9-32VDC;0-10VDC/12-32VDC
Pressure range: 0 To 1-15psi
Type: Gage,Sealed Gage
Thread: M10,M12,M20,G1/4,G1/8,1/4BSPT,7/16UNF,1/4NPT,1/8NPT or custom
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Connection: Packard connector

¥ 0.00

Buy now

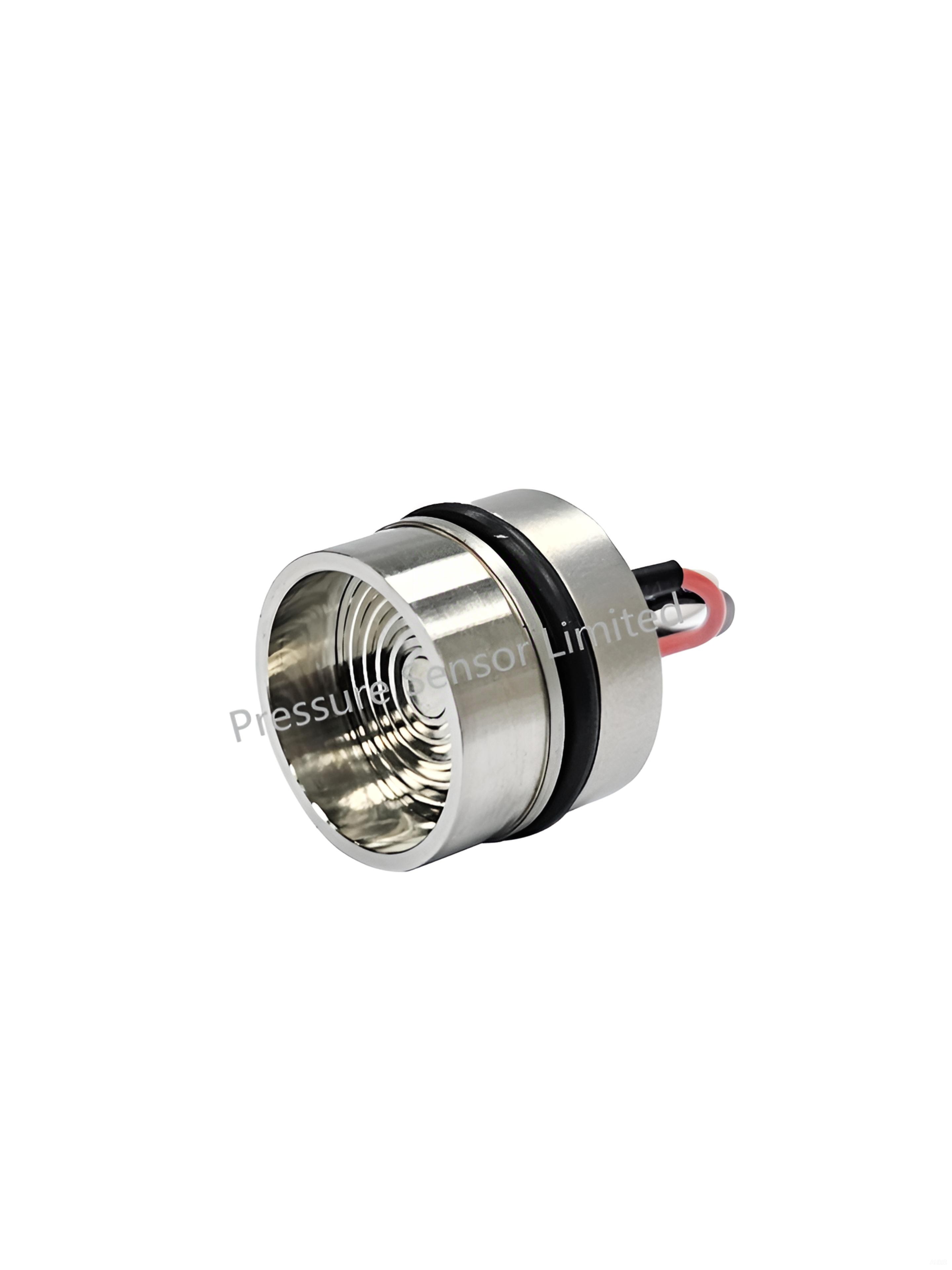

PSC601 MEMS transducer

Output/Supply: 0.5-4.5VDC/4.75-5.25VDC; I²C/3.3VDC Typ.; 0-100mV/10VDC Typ.; 0-100mV Typ./1.5mA Typ.
Pressure range: 0 To 1-2000psi
Type: Gage,ABS,Sealed Gage
Thread: O-ring Seal
Compensated temp range/Operating temp range: 0 To 70°C/-40 To 125°C or customization
TEB: ±1.5% FS
Wetted parts: 316 SS
Electrical connection: Wire

¥ 0.00

Buy now
